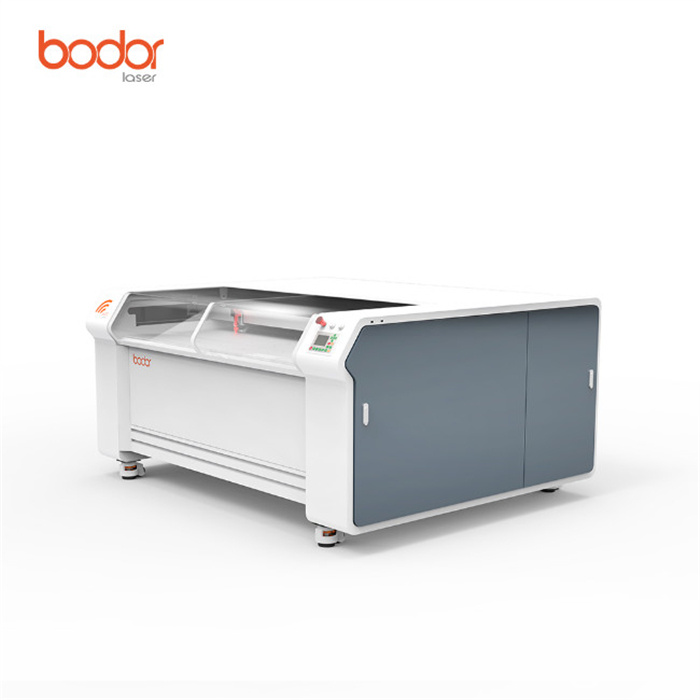

High precision laser engraving machine with double heads

Basic Info

Model No.: BCL-X2H

Product Description

Brief Introduction
High precision Laser Engraving Machine with double heads has double laser heads. Drive system with high precision linear guide and slide block, high precision, wear resistance, high speed; arc-gear synchronous belt 3m, stable transmission, strong shock absorption ability and small noise.Red Cross accurate positioning, convenient and quick in finding engraving and cutting position. Three-mirrors and one focal lens path system to deliver outstanding engraving and cutting effect. High precision laser engraving machine with double heads can apply in many materials, such as metals (including rare metals), engineering plastics, electroplating materials, coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.
Features
High speed marking.
"Big eye"design.
High quality laser beam.
Long lifetime.
Strong body.
Safe.
Portable.

Technical Parameter
Model BCL1610X2H
Working Area 1600*1000mm
Laser Power 80w/100w/120w/150w
Laser Type CO2 Sealed Laser Tube,10.6μm
Cooling Type Water Cooling
Engraving Speed 0-60000mm/min
Cutting Speed 0-40000mm/min
Laser Output Control 0-100% Set by Software
Highest Scanning Precision 4000DPI
Locating Accuracy ≤±0.01mm
Drive System High-precision 3-phase Stepper Motor
Auxiliary Equipments Exhaust fan and water chiller

Power Supply AC110V/220V±10%,50HZ/60HZ

High precision laser engraving machine with double heads

Product Categories : Laser Engraving Machine > Double Heads Laser Engraving Machine

Product Images

  • High precision laser engraving machine with double heads
  • High precision laser engraving machine with double heads
  • High precision laser engraving machine with double heads
  • High precision laser engraving machine with double heads
  • High precision laser engraving machine with double heads
