Home > Products > Laser Engraving Machine > Laser Engraving And Cutting Machine > Mini CO2 Laser engraving machine 80W BCL1309X

Mini CO2 Laser engraving machine 80W BCL1309X

Basic Info

Model No.: BCL-X

Product Description

Brief Introduction
Mini CO2 Laser Engraving Machine 80W BCL 1309X uses RECI laser tube,when the working current is 4mA and the tube is in the state of pre-ionization, the laser can be used for high-frequency impulse engraving. The product is featured for working under large power rate and long service time, which is suitable for the cutting of knife mold machine and thick acrylic sheet.Mini CO2 Laser engraving machine 80W BCL 1309X is suitable for cutting and engraving acrylic, wood planks, bamboo ware, double color board, paper, leather, shell,coconut,shell,ABS board,etc.Mini CO2 Laser engraving machine 80W BCL 1309X uses RECI laser tube,when the working current is 4mA and the tube is in the state of pre-ionization, the laser can be used for high-frequency impulse engraving. Drive system with high precision linear guide and slide block, high precision, wear resistance, small resistance, high speed; stable transmission, strong shock absorption ability and small noise. Red Cross accurate positioning, convenient and quick in finding engraving and cutting position. Three-mirrors and one focal lens path system to deliver outstanding engraving and cutting effect.

Applicable industries: mould industry (construction mould, aviation and navigation mould, wooden mould), advertising, decoration, arts and crafts, electronics, electric appliances, etc.

Processing materials: materials such as acrylic, wood planks (light planks, candlenut wood), bamboo ware, double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease, ABS board, lamp shade, etc.


Technical Parameter

Model BCL1006X BCL1309X
Working Area 1000*600mm 1300*900mm
Laser Power 80W/100w/120w/150w
Laser Type CO2 Sealed Laser Tube ,10.6μm
Cooling Type Water Cooling
Engraving Speed 0-60000mm/min
Cutting Speed 0-40000mm/min
Laser Output Control 0-100% set by software
Min. Engraving Size Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm
Highest Scanning Precision 4000DPI
Locating Accuracy ≤+0.01mm
Controlling Software DSP Control System
Graphic Format Supported DST PLT BMP DXF DWG AI LAS,etc
Compatible Software CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc.
Color Separation Yes
Drive System High-precision 3-phase Stepper Motor
Auxiliary Equipments Exhaust Fan and Air Exhaust Pipe
Power Supply AC110V/220V+10%,50HZ/60HZ

Working Environment Temperature:0-45C,Humidity 5-95%(No Condensate Water)

Mini CO2 Laser engraving machine 80W BCL1309X

Product Categories : Laser Engraving Machine > Laser Engraving And Cutting Machine

Product Images

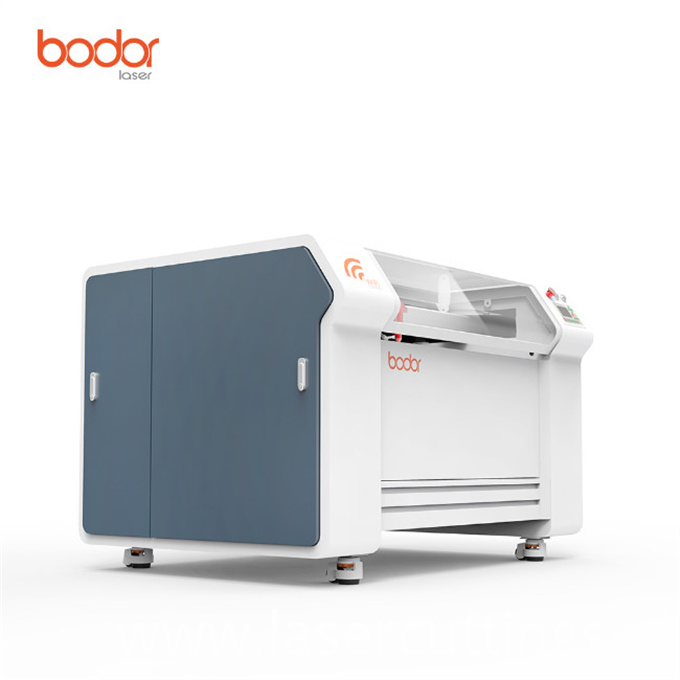

  • Mini CO2 Laser engraving machine 80W BCL1309X
  • Mini CO2 Laser engraving machine 80W BCL1309X
  • Mini CO2 Laser engraving machine 80W BCL1309X
  • Mini CO2 Laser engraving machine 80W BCL1309X
  • Mini CO2 Laser engraving machine 80W BCL1309X
