Factory Price 1300*900mm Acrylic Co2 Laser Cutting Machine

Basic Info

Model No.: BCL-X

Product Description

Brief Introduction
Factory Price 1300*900mm Acrylic Co2 Laser Cutting Machine, it can engraving and cutting. Drive system with high precision linear guide and slide block, high precision, wear resistance, small resistance, high speed; arc-gear synchronous belt 3m, stable transmission, strong shock absorption ability and small noise. Factory Price 1300*900mm Acrylic Co2 Laser Cutting Machine is suitable for cutting and engraving acrylic, wood planks, bamboo ware, double color board, paper, leather, shell,coconut,shell,ABS board,etc.
Features
Big eye design.
Red cross position system which is accurate to position.
Wife control.
RECI laser tube which is the leading brand in China.
Beautiful appearance design.
Open cover protection for operator.
Technical Parameter
Model BCL1006X BCL1309X
Working Area 1000*600mm 1300*900mm
Laser Power 80W/100w/120w/150w
Laser Type CO2 Sealed Laser Tube ,10.6μm
Cooling Type Water Cooling
Engraving Speed 0-60000mm/min
Cutting Speed 0-40000mm/min
Laser Output Control 0-100% set by software
Min. Engraving Size Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm
Highest Scanning Precision 4000DPI
Locating Accuracy ≤+0.01mm
Controlling Software DSP Control System
Graphic Format Supported DST PLT BMP DXF DWG AI LAS,etc
Compatible Software CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc.
Color Separation Yes
Drive System High-precision 3-phase Stepper Motor
Auxiliary Equipments Exhaust Fan and Air Exhaust Pipe
Power Supply AC110V/220V+10%,50HZ/60HZ

Working Environment Temperature:0-45C,Humidity 5-95%(No Condensate Water)

Factory Price 1300*900mm Acrylic Co2 Laser Cutting Machine

Product Categories : Laser Engraving Machine > Laser Engraving And Cutting Machine

Product Images

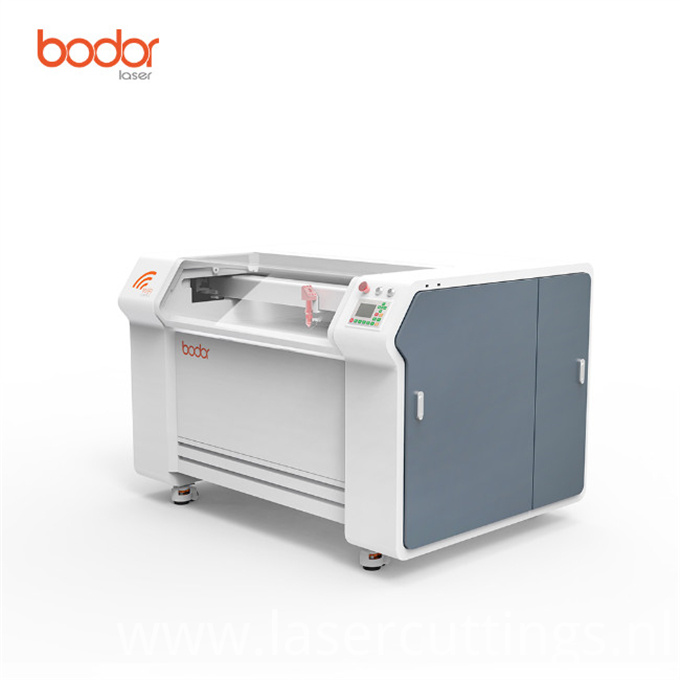

  • Factory Price 1300*900mm Acrylic Co2 Laser Cutting Machine
  • Factory Price 1300*900mm Acrylic Co2 Laser Cutting Machine
  • Factory Price 1300*900mm Acrylic Co2 Laser Cutting Machine
  • Factory Price 1300*900mm Acrylic Co2 Laser Cutting Machine
  • Factory Price 1300*900mm Acrylic Co2 Laser Cutting Machine
