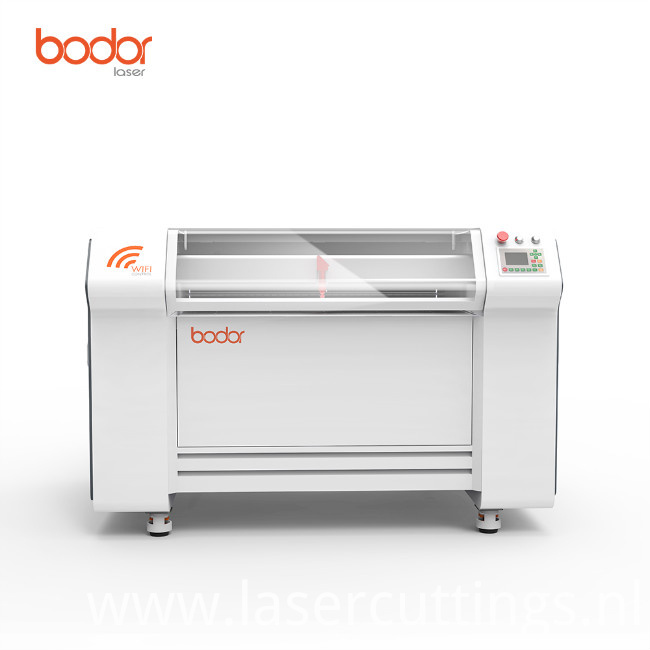

CO2 acrylic wood laser cutting and engraving machine

Basic Info

Model No.: BCL-X

Product Description

Brief Introduction
CO2 acrylic wood laser cutting and engraving machine has three-mirrors and one focal lens path system to deliver outstanding engraving and cutting effect. The product is featured for working under RECI laser tube, more powerful, long lifetime, which is suitable for the cutting of thick acrylic sheet and knife mold machine. CO2 acrylic wood laser cutting and engraving machine is suitable for cutting and engraving acrylic, wood planks, bamboo ware, double color board, paper, leather, shell,coconut,shell,ABS board,etc.


Features

Big eye design.
Red cross position system which is accurate to position.
Wife control.
RECI laser tube which is the leading brand in China.
Beautiful appearance design.
Open cover protection for operator.


Technical Parameter

Model: BCL1006X BCL1309X
Working Area: 1000*600mm 1300*900mm
Laser Power: 80W/100w/120w/150w
Laser Type: CO2 Sealed Laser Tube ,10.6μm
Cooling Type: Water Cooling
Engraving Speed: 0-60000mm/min
Cutting Speed: 0-40000mm/min
Laser Output Control: 0-100% set by software
Min. Engraving Size Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm
Highest Scanning Precision: 4000DPI
Locating Accuracy: ≤+0.01mm
Controlling Software: DSP Control System
Graphic Format Supported: DST PLT BMP DXF DWG AI LAS,etc
Compatible Software: CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc.
Color Separation: Yes
Drive System: High-precision 3-phase Stepper Motor
Auxiliary Equipments: Exhaust Fan and Air Exhaust Pipe
Power Supply: AC110V/220V+10%, 50HZ/60HZ

Working Environment Temperature: 0-45C,Humidity 5-95%(No Condensate Water)

Co2 acrylic wood laser cutting and engraving machine

Product Categories : Laser Engraving Machine > Laser Engraving And Cutting Machine

Product Images

  • CO2 acrylic wood laser cutting and engraving machine
  • CO2 acrylic wood laser cutting and engraving machine
  • CO2 acrylic wood laser cutting and engraving machine
  • CO2 acrylic wood laser cutting and engraving machine
  • CO2 acrylic wood laser cutting and engraving machine
