Home > Products > Laser Cutting Machine > Laser Metal Sheet Cutting Machines > Exchange Platform Laser Cutting Machine

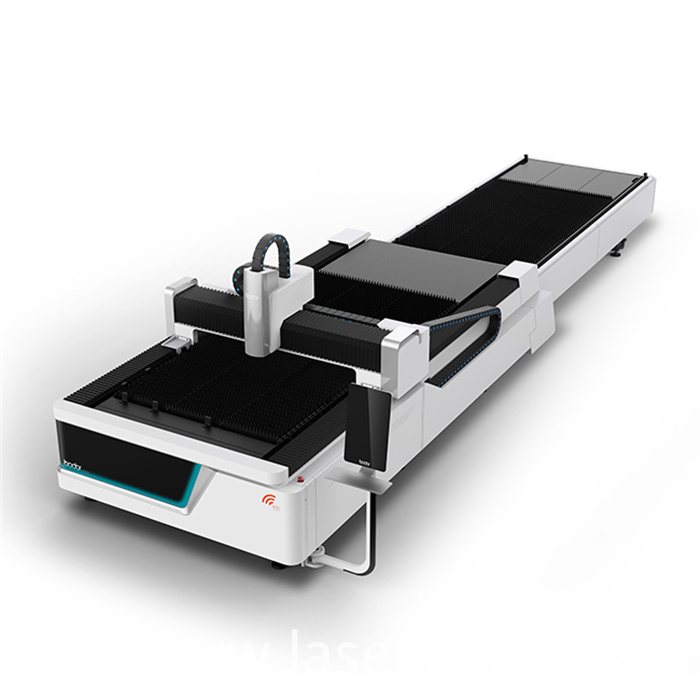

Exchange Platform Laser Cutting Machine

Basic Info

Model No.: E-series

Product Description

Brief Introduction
Exchange Platform Laser Cutting Machine has Mango wireless remote control handle,elegant curves fit the hand palm well,and also has touch control screen,the new 21.5 inch touch display has a larger area and incorporates touch function for more convenience. The cooperation between the UI display and the table makes a more intuitional operation. The 10 points touch is more accurate, which improves users` experience. It is suitable for cutting carbon steel, stainless steel, aluminum, brass and alloy metal materials.
Features
A cast iron bed lasts forever.
The machine accuracy could maintain for a long time, and no deformation in a life cycle.
Focal point will be automatically adjusted in cutting process to achieve the best cutting effect of different thicknesses sheets metal.
Integral steel mold pressure casting, light, flexible and efficient
Independent R&D operating system, perfectly combines high efficiency and simplicity with inclusiveness
Intelligent travel protection
Auxiliary gas low pressure alarm function
WIFI remote intelligent assistance
A new generation of safety following module
Automatic lubrication system
Two automatic exchange platforms system.
Technical Parameter
Model E3015 E4020
Working Area 3000*1500mm 4000*2000mm
Laser Output Power 6000w/4000w/3000w/2000w/1500w/1000w
X/Y-axis positioning accuracy 0.03mm 0.05mm
X/Y-axis repositioning accuracy 0.02mm 0.03mm

X/Y-axis Max. linkage speed 140m/min

Exchange Platform Laser Cutting Machine

Product Categories : Laser Cutting Machine > Laser Metal Sheet Cutting Machines

Product Images

  • Exchange Platform  Laser Cutting Machine
  • Exchange Platform  Laser Cutting Machine
  • Exchange Platform  Laser Cutting Machine
  • Exchange Platform  Laser Cutting Machine
  • Exchange Platform  Laser Cutting Machine
