Home > Products > Laser Cutting Machine > Laser Metal Sheet Cutting Machines > Fiber laser cutting stainless machine with exchange table

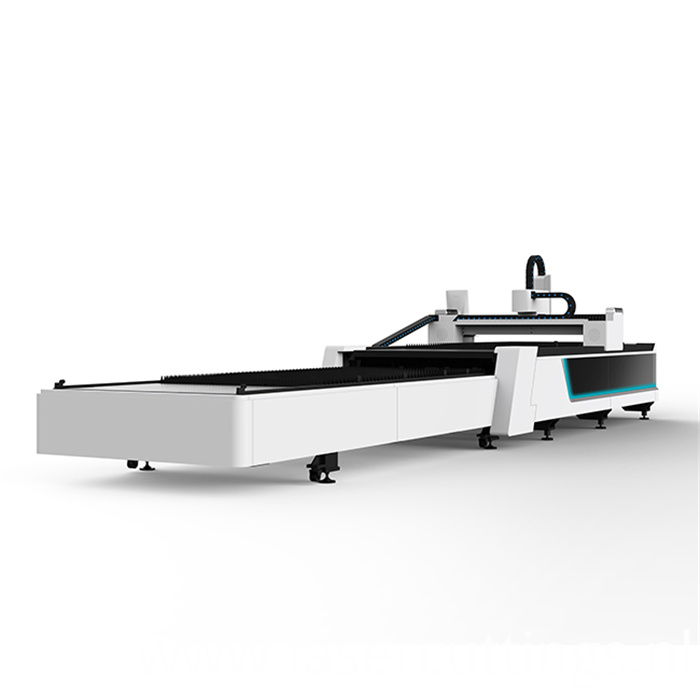

Fiber laser cutting stainless machine with exchange table

Basic Info

Model No.: E-series

Product Description

Brief Introduction
Fiber laser cutting stainless machine with exchange table Rapid exchanging between two platforms greatly improve work efficiency. Rack and pinion transmission system has better rigidity and higher accuracy, saving feeding time,making operation more efficient. The highest speed of platform exchanging is 10s.It is suitable for cutting carbon steel, stainless steel, aluminum, brass and alloy metal materials.
Features
A cast iron bed lasts forever.
The machine accuracy could maintain for a long time, and no deformation in a life cycle.
Focal point will be automatically adjusted in cutting process to achieve the best cutting effect of different thicknesses sheets metal.
Integral steel mold pressure casting, light, flexible and efficient
Independent R&D operating system, perfectly combines high efficiency and simplicity with inclusiveness
Intelligent travel protection
Auxiliary gas low pressure alarm function
WIFI remote intelligent assistance
A new generation of safety following module
Automatic lubrication system
Two automatic exchange platforms system.
Technical Parameter
Model E3015 E4020
Working Area 3000*1500mm 4000*2000mm
Laser Output Power 6000w/4000w/3000w/2000w/1500w/1000w
X/Y-axis positioning accuracy 0.03mm 0.05mm
X/Y-axis repositioning accuracy 0.02mm 0.03mm

X/Y-axis Max. linkage speed 140m/min

Fiber laser cutting stainless machine with exchange table

Product Categories : Laser Cutting Machine > Laser Metal Sheet Cutting Machines

Product Images

  • Fiber laser cutting stainless machine with exchange table
  • Fiber laser cutting stainless machine with exchange table
  • Fiber laser cutting stainless machine with exchange table
  • Fiber laser cutting stainless machine with exchange table
  • Fiber laser cutting stainless machine with exchange table
