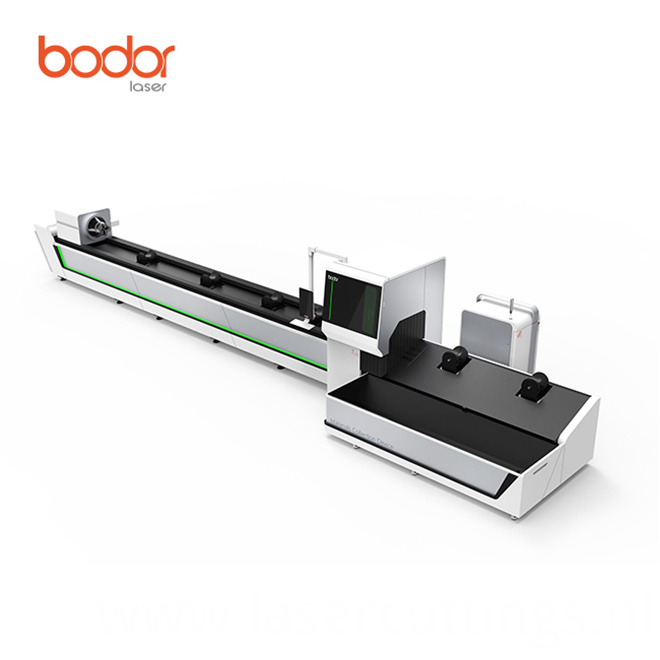

Cnc pipe metal laser cutting machine

Basic Info

Model No.: T230 series

Product Description

Pressure to manufacture products in shorter time periods and at lower costs is growing in conventional tube cutting. With the laser, entire process steps are no longer necessary, and this means immediate savings. You expand your part spectrum and your range of customers at the same time. The laser`s versatility makes it possible to produce small lot sizes quickly and efficiently and offers the flexibility needed to tackle custom jobs. The broadened spectrum of design possibilities offered by laser cutting gives both manufacturers and their clients a clear competitive edge over conventional methods.

Changes of diameter, thickness or shape are all done automatically. No additional tooling or grippers are needed to switch from one shaped tube or section to another. This provides tremendous savings compared to conventional manual processes. Part quality is no longer dependent on the operators set up skill. The operator is free to focus on the cutting process, material flow and on production.

Features
The diameter is increased by 30%.
The weight is increased by 100%.
Suitable for various tubes cutting.
Touch control.
Fully automatic electric chuck.
Full automatic loading and unloading device.
BodorPro searching,Precision upgrading.


Technical Parameter

Model: T230
Effective Pipe Cutting Length: 6500mm
Max. Output Power: 4000w/3000w/2000w/1500w/1000w
Effective Pipe Cutting Diameter: Φ20-230mm
Effective Square Tube Cutting Diameter: 20*20-160*160mm
Rectangular tube Edge Length: 20-170mm
Rectangular tube Max. Outer Circle Diameter: ≤230mm
X/Y-axis positioning accuracy: 0.05mm
X/Y-axis repositioning accuracy: 0.03mm
X axis maximum speed: 95m/min

Y axis maximum speed: 70m/min

Cnc pipe metal laser cutting machine
