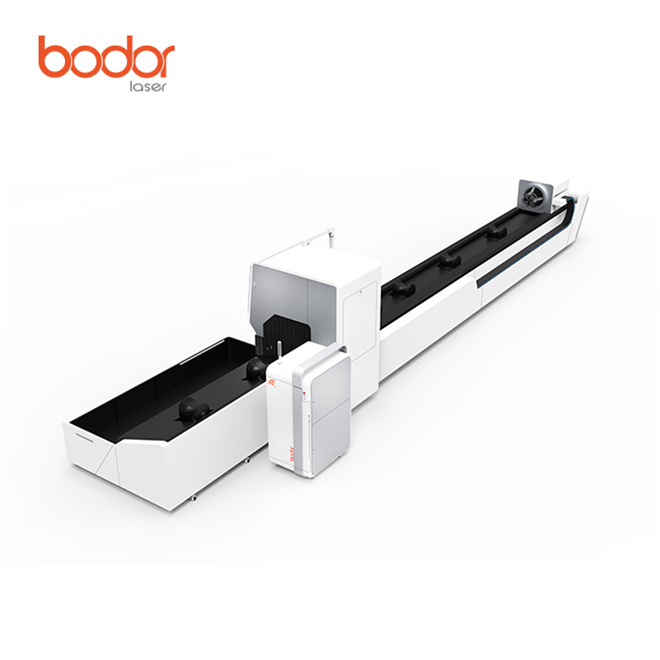

High speed fiber tube laser cutter

Basic Info

Model No.: T230 series

Product Description

High speed fiber tube laser cutter has touch screen. The first one to use UI design in the world which lets display respond to processing table, making processing more intuitive. 1920*1080 high-definition capacitive 10 points touch screen. Elegant curves precisely fit machine body. High speed fiber tube laser cutter is suitable for cutting carbon steel, stainless steel, aluminum, brass and alloy metal materials.
Features
The diameter is increased by 30%.
The weight is increased by 100%.
Suitable for various tubes cutting.
Touch control.
Fully automatic electric chuck.
Full automatic loading and unloading device.
BodorPro searching,Precision upgrading.
Technical Parameter
Model T230
Effective Pipe Cutting Length 6500mm
Max. Output Power 4000w/3000w/2000w/1500w/1000w
Effective Pipe Cutting Diameter Φ20-230mm
Effective Square Tube Cutting Diameter 20*20-160*160mm
Rectangular tube Edge Length 20-170mm
Rectangular tube Max. Outer Circle Diameter ≤230mm
X/Y-axis positioning accuracy 0.05mm
X/Y-axis repositioning accuracy 0.03mm
X axis maximum speed 95m/min

Y axis maximum speed 70m/min

High speed fiber tube laser cutter

Product Categories : Laser Cutting Machine > Laser Tube Cutting Machines

Product Images

  • High speed fiber tube laser cutter
  • High speed fiber tube laser cutter
  • High speed fiber tube laser cutter
  • High speed fiber tube laser cutter
  • High speed fiber tube laser cutter
