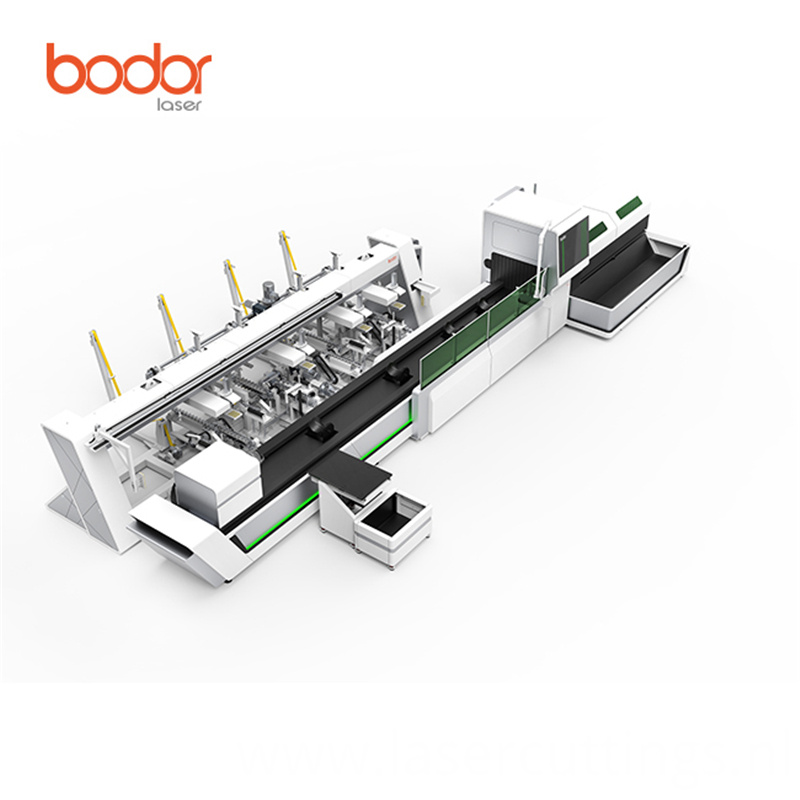

Automatic Load Tube Laser Cutting Machine Loading: After the whole bundle pipes were put on the feeding device, these pipes can be intelligently divided, loaded and connected seamlessly with the pipe cutter to ensure that only one pipe is transported to the delivery arm at a time. Unloading: Finished material is automatically unloaded to the parts silo, double rollers auxiliary support long parts; materials can be automatic prepared during processing time, shorten the feeding time. Automatic unloading, parts and scraps are automatically separated, reducing sorting, saving labor, improving machine production efficiency.
Automatic Load Tube Laser Cutting Machine has full automatic loading device,after the whole bundle pipes were put on the feeding device, these pipes can be intelligently divided, loaded and connected seamlessly with the pipe cutter to ensure that only one pipe is transported to the delivery arm at a time.Automatic Load Tube Laser Cutting Machine is suitable for cutting carbon steel, stainless steel, aluminum, brass and alloy metal materials.
Features
The diameter is increased by 30%. The weight is increased by 100%. Suitable for various tubes cutting. Touch control. Fully automatic electric chuck. Full automatic loading and unloading device. BodorPro searching,Precision upgrading.
Technical Parameter
Model: T230A Effective Pipe Cutting Length: 2000mm-6500mm Max. Output Power: 4000w/3000w/2000w/1500w/1000w Effective Pipe Cutting Diameter: Φ20-230mm Effective Square Tube Cutting Diameter: □20*20mm-□160*160mm Rectangular tube Edge Length: 20-170mm Max. Outer Circle Diameter : ≤230mm X/Y-axis positioning accuracy: 0.05mm X/Y-axis repositioning accuracy: 0.03mm X axis maximum speed: 95m/min Y axis maximum speed: 70m/min
