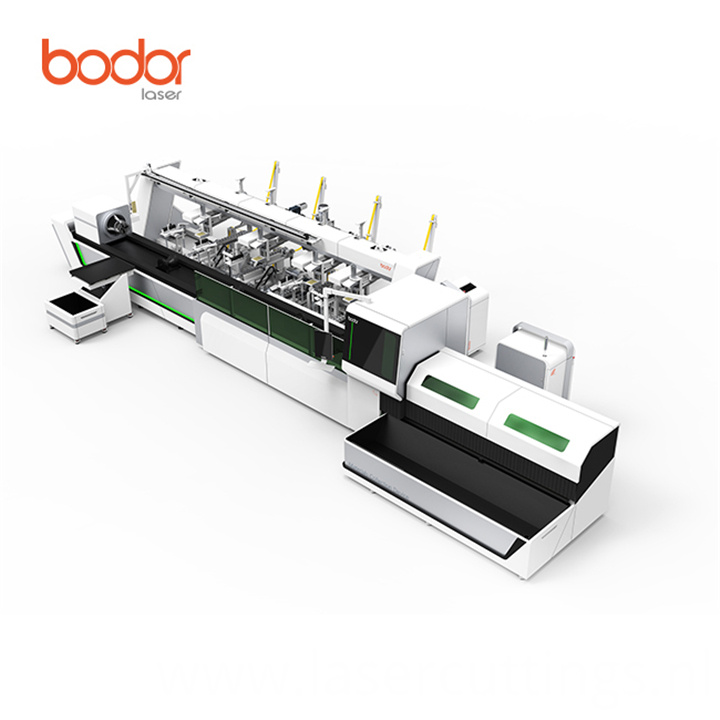

Brief Introduction 3000w tube Laser Cutting Machine use UI design in the world which lets display respond to processing table, making processing more intuitive. BodorPro-T 2.0 Four-sided searching, Precision upgrading,it use a new graphic rendering and presentation, pipe parts can realize dual display as flat and three-dimensional.3000w tube laser cutting machine is fit to cutting carbon steel, stainless steel, aluminum, brass and alloy metal materials. Features The diameter is increased by 30%. The weight is increased by 100%. Suitable for various tubes cutting. Touch control. Fully automatic electric chuck. Full automatic loading and unloading device. BodorPro searching,Precision upgrading. Technical Parameter Model T230A Effective Pipe Cutting Length 2000mm-6500mm Max. Output Power 4000w/3000w/2000w/1500w/1000w Effective Pipe Cutting Diameter Φ20-230mm Effective Square Tube Cutting Diameter □20*20mm-□160*160mm Rectangular tube Edge Length 20-170mm Max. Outer Circle Diameter ≤230mm X/Y-axis positioning accuracy 0.05mm X/Y-axis repositioning accuracy 0.03mm X axis maximum speed 95m/min Y axis maximum speed 70m/min
Product Categories : Laser Cutting Machine > Laser Tube Cutting Machines
