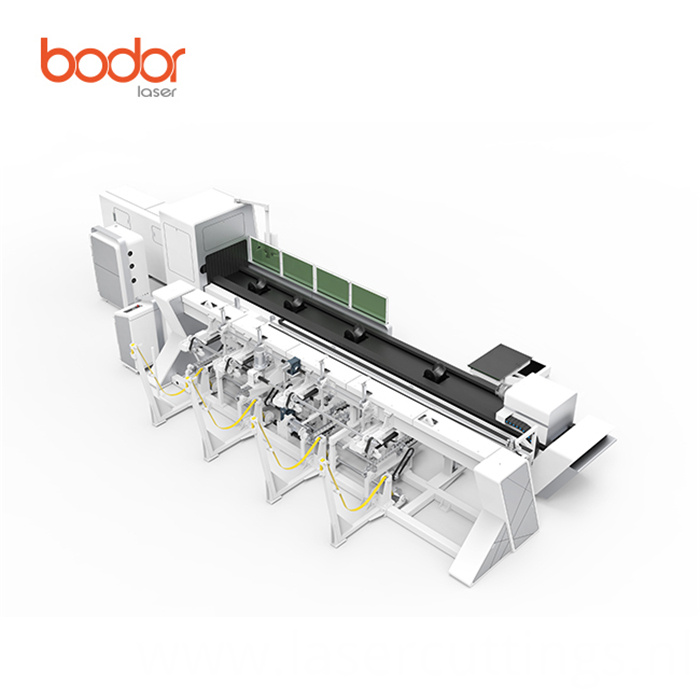

Brief Introduction Fiber tube Laser Cutting Machine`s maximum cutting diameter is 30% longer than the mainstream products in the market.Elegant curves precisely fit machine body. Strong waterproof breathable system creates the best space, making operation more convenient.Fiber tube laser cutting machine is suitable for cutting carbon steel, stainless steel, aluminum, brass and alloy metal materials.Fiber tube laser cutting machine meets the parts processing requirements of most industries, working accuracy is stable. Features The diameter is increased by 30%. The weight is increased by 100%. Suitable for various tubes cutting. Touch control. Fully automatic electric chuck. Full automatic loading and unloading device. BodorPro searching,Precision upgrading. Technical Parameter Model T230A Effective Pipe Cutting Length 2000mm-6500mm Max. Output Power 4000w/3000w/2000w/1500w/1000w Effective Pipe Cutting Diameter Φ20-230mm Effective Square Tube Cutting Diameter □20*20mm-□160*160mm Rectangular tube Edge Length 20-170mm Max. Outer Circle Diameter ≤230mm X/Y-axis positioning accuracy 0.05mm X/Y-axis repositioning accuracy 0.03mm X axis maximum speed 95m/min Y axis maximum speed 70m/min
