Cheap metal laser cutting tube machine

Basic Info

Model No.: T230A series

Product Description

Brief Introduction
Cheap metal laser cutting tube machine has fully automatic electric chuck,Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering electric chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.Cheap metal laser cutting tube machine is suitable for cutting carbon steel, stainless steel, aluminum, brass and alloy metal materials.
Features
The diameter is increased by 30%.
The weight is increased by 100%.
Suitable for various tubes cutting.
Touch control.
Fully automatic electric chuck.
Full automatic loading and unloading device.
BodorPro searching,Precision upgrading.
Technical Parameter
Model T230A
Effective Pipe Cutting Length 2000mm-6500mm
Max. Output Power 4000w/3000w/2000w/1500w/1000w
Effective Pipe Cutting Diameter Φ20-230mm
Effective Square Tube Cutting Diameter □20*20mm-□160*160mm
Rectangular tube Edge Length 20-170mm
Max. Outer Circle Diameter ≤230mm
X/Y-axis positioning accuracy 0.05mm
X/Y-axis repositioning accuracy 0.03mm
X axis maximum speed 95m/min

Y axis maximum speed 70m/min

Cheap metal laser cutting tube machine

Product Categories : Laser Cutting Machine > Laser Tube Cutting Machines

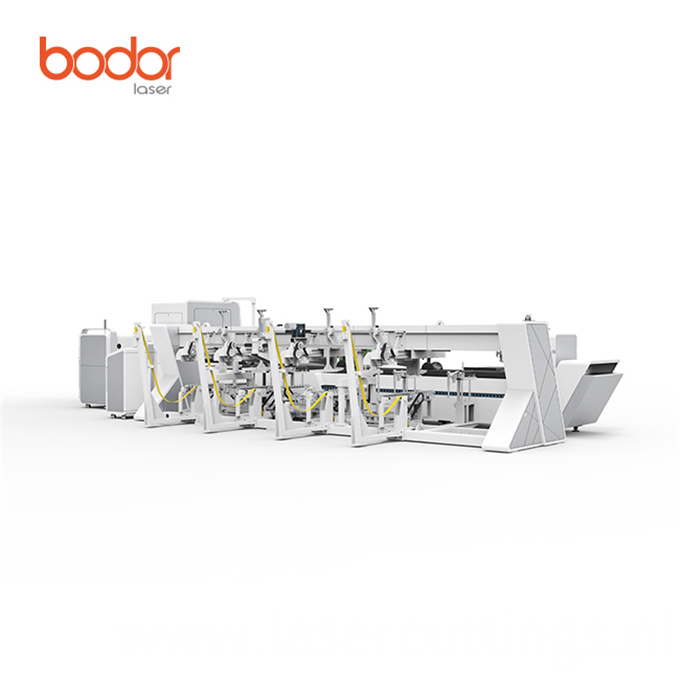

Product Images
