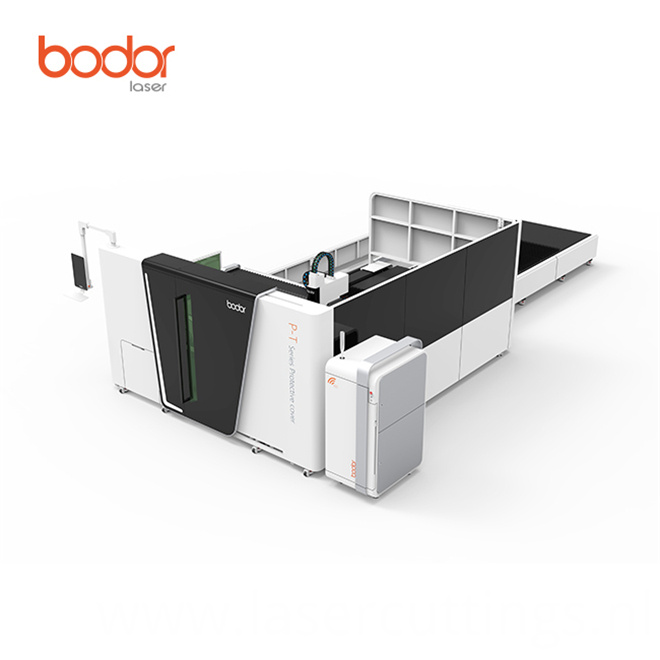

Durable fiber laser cutting machine

Basic Info

Model No.: P-T series

Product Description

Durable Fiber Laser Cutting Machine has Automatic nozzle changer. Adopting abundant and accurate control system can realize automatic replacement of nozzles according to different materials and thicknesses, saving manual replacement time and improving processing efficiency, smart and convenient; Newest automatic calibration and cleaning functions can achieve fully automatic laser head calibration and nozzle cleaning, reducing the repetitive manual work; High-precision drive system provides a reliable replacement precision and stability to ensure that every replacement can be perfectly safe. Fully enclosed protection of the whole part improves the safety of parts and personal. Durable fiber Laser Cutting Machine is suitable for cutting carbon steel, stainless steel, aluminum, brass and alloy metal materials.
Features
A cast iron bed lasts forever.
The machine accuracy could maintain for a long time, and no deformation in a life cycle.
Focal point will be automatically adjusted in cutting process to achieve the best cutting effect of different thicknesses sheets metal.
Integral steel mold pressure casting, light, flexible and efficient.
Full closed protection improves using security.
Two automatic exchange platforms system
Independent R&D operating system, perfectly combines high efficiency and simplicity with inclusiveness.
Intelligent travel protection.
Auxiliary gas low pressure alarm function.
WIFI remote intelligent assistance.
A new generation of safety following module.
Automatic lubrication system.
Technical Parameter
Model P3015T
Working Area 3000mm*1500mm
Laser Output Power 4000w/3000w/2000w/1500w/1000w
Effective Pipe Cutting Diameter Φ20- Φ200mm
Effective Square Tube Cutting Diameter □20*20-□140*140mm
Rectangular tube Min. Edge Length ≥20mm
Max. Outer Circle Diameter ≤200mm
Effective Pipe Cutting Length 3m/6m
X/Y/U-axis positioning accuracy 0.03mm
X/Y/U-axis repositioning accuracy 0.02mm
X/Y-axis Max. linkage speed 100m/min

U-axis max.moving speed 30m/min

Durable fiber laser cutting machine
