Tube laser metal cutting machine

Basic Info

Model No.: E-T series

Product Description

Brief Introduction
Tube Laser Metal Cutting Machine has auxiliary gas low pressure alarm function, it can provide real-time pressure detection, pushing abnormal information when pressure value is lower than optimal cutting effect and precision. Ensure the cutting performance, accuracy and timeliness of gas replacement.Tube laser Metal Cutting Machine is suitable for cutting carbon steel, stainless steel, aluminum, brass and alloy metal materials.
Features
A cast iron bed lasts forever.
Gear drive,10 s exchange, No.1 in the industry.
Auto focus laser head.
Mango wireless remote control handle.
Auxiliary gas low pressure alarm function.
WIFI remote intelligent assistance.
Integral steel mold pressure casting, light, flexible and efficient.
BodorPro 2.0 Automatic tracing-edge, dual-use for plate and tube.
The heavy bed makes the equipment more stable in working.
Auxiliary feeding mechanism.
Intelligent travel protection.
Intelligent alarm system.
Technical Parameter
Model E3015T E4020T
Working Area 3000*1500mm 4000*2000mm
Laser Output Power 4000w/3000w/2000w/1500w/1000w
Effective Pipe Cutting Diameter Φ20-Φ200mm
Effective Square Tube Cutting Diameter □20*20-□140*140mm
Rectangular tube Min. Edge Length ≥20mm
Max. Outer Circle Diameter ≤200mm
Effective Pipe Cutting Length 3m/6m
X/Y/U-axis positioning accuracy 0.03mm
X/Y/U-axis repositioning accuracy 0.02mm
X/Y-axis Max. linkage speed 100m/min

U-axis max.moving speed 30m/min

Tube laser metal cutting machine

Product Categories : Laser Cutting Machine > Metal Sheet And Tube Cutting Machines

Product Images

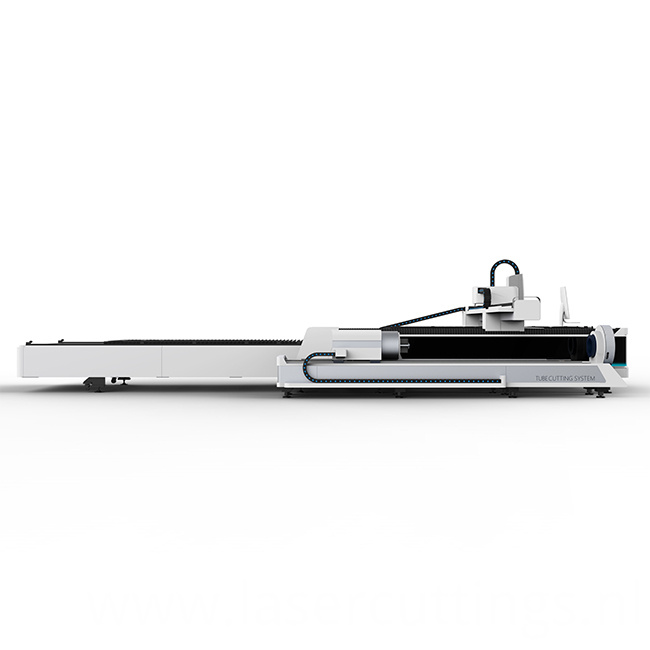

  • Tube laser metal cutting machine
  • Tube laser metal cutting machine
  • Tube laser metal cutting machine
  • Tube laser metal cutting machine
  • Tube laser metal cutting machine
